G7 - Monitor Layout configurations

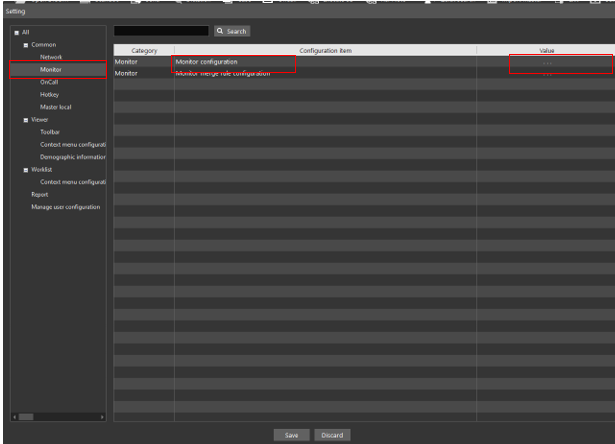

• Navigate to the settings tab at the top right of the viewer, identified by a gear icon. Refer to the screenshot below.

• Click on Monitor on the left search menu bar.
• In the Value column click on the three dots to launch the monitor configuration screen.

• The monitor layout will display below in line with your Windows display settings.
• If a radiologist has more than three monitors, one monitor must be disabled to accommodate INFINITT results as well as the Hanging Protocols.
• A user can disable a monitor by clicking on it once.

The Windows display settings will assist in identifying the monitor layout.

You can rearrange the screens by right-clicking on the number at the top of the monitor you want to switch. This will be based on the reporting preferences of the radiologist.

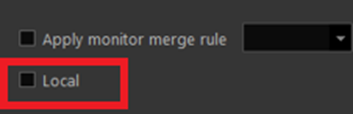

By ticking the Local box below, these settings will be saved to the specific workstation.
