How to burn a CD from G7 PACS

•  Launch G7 PACS

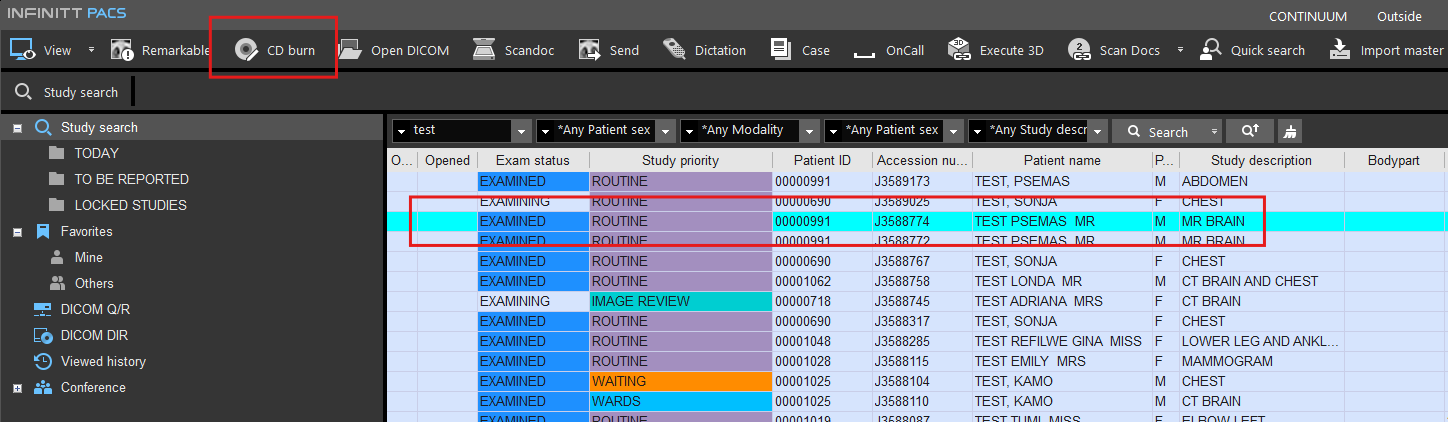

  • On the PACS worklist click once on the required patient and select CD Burn on the menu bar.

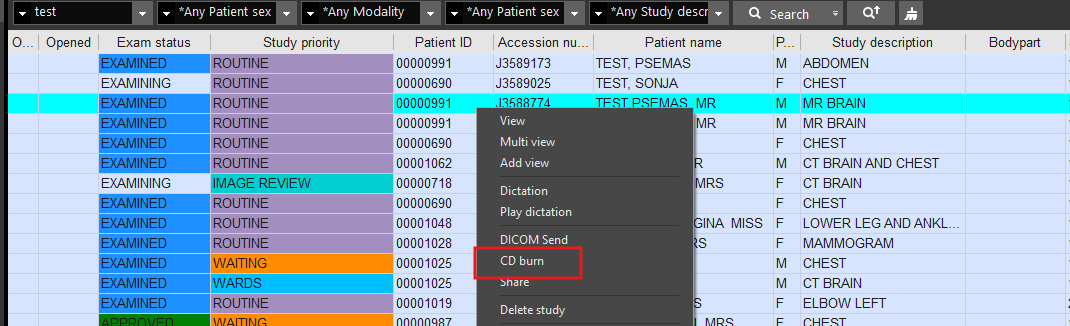

• • Alternatively, the user can right-click on the required study and select CD Burn from the context menu.

The CD Burn interface will populate.

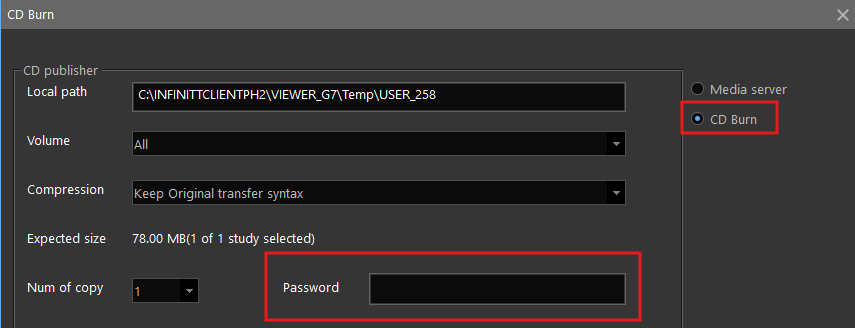

• Ensure that the CD Burn option is selected on the top right, then type in the password of the user signed in on INFINITT

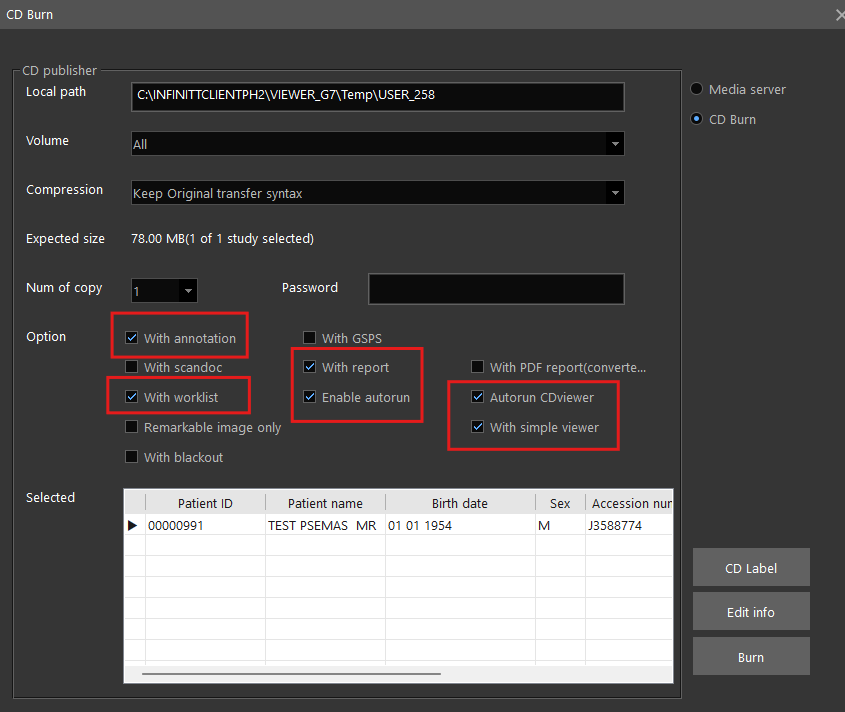

• Tick the following boxes on the CD Burn screen
  • With annotation
  • With worklist
  • With report
  • Enable autorun
  • Autorun CDviewer
  • With simple viewer



• Ensure a rewritable CD is in the computer's CD tray with sufficient space to accommodate the images. Once that is done, click on Burn.

•  Please allow the CD burner to complete to 100% before closing the CD Burn interface.
